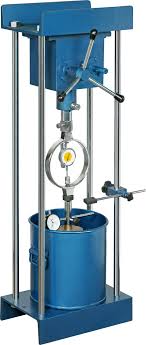

Swell Test Apparatus


The outfit comprises the following.

  • One loading unit Hand. operated 5000 kg capacity with two rates of travel
  • One Gun metal mould, 100mm dia x 127.3 cm height X 1000 cc volume with base plate & collar
  • One perforated swell plate 100mm dia X 16mm thick
  • One spacer 100mm dia X 12.7mm thick
  • Two porous stone of 100mm dia X 12.7mm thick
  • One load transfer bar
  • One steel ball & one soaking tank, 250mm dia x 210mm high
  • Dial gauge 0.01mm X 25mm travel
  • Proving ring of 2.5 KN capacity with calibration chart and carrying case.

Optional Accessories :

High sensitivity Proving Ring, 250 kg or 500 kg fitted with 0.002 mm dial gauge with certificate in a nice wooden carrying case.
Dial Gauge 0.01mm x 25mm travel.
