Proctor Needle - Spring Type

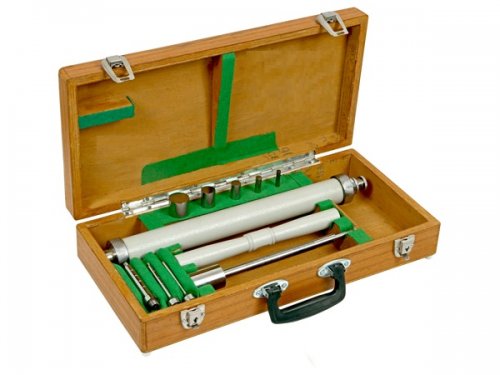

The Instrument consist of needle attached to a spring loaded plunger. the stem of which is calibrated to read 0 to 40 kgs in 1 kg division. Long stem is graduated at every 12.5mm to read depth of penetration and for use with needles of larger areas. The small penetration steam is also graduated in 12.5mm division and is used with needles of smaller areas. Needle points one each of 0.25, 0.5, 1.0,1.5,2.0, 3.5, and 6.0 sq.cm. and one tommy pin is supplied. Complete as above in a wooden carrying case.
