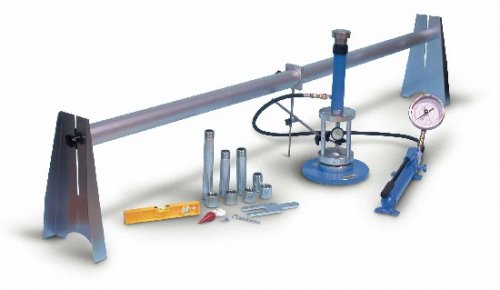

Plate Bearing Test Apparatus
Consist of the following.
- Hand operated Hydraulic jack with pressure gauge capacity 50 tonne with 5 meter long metal tube with end coupling - 1 No.
- Ball and Socket arrangtement, consisting of two steel plate with one steel ball in between them.- 1 Set.
- Extension rod, 12 mm dia X 25 mm long for taking dial gauge reading. - 16 Nos.
- Magnetic base with female thread on top for holding extension rod. - 4 Nos.
- Top end plate, 50 mm dia male thread for fitting on the extension rod. - 4 Nos.
- Column 15 cm dia x 50 cm long with flanges complete with four bolts and nuts. 1 Nos.
- Column 15 cms dia and 50 cms long with flanges complete with 4 bolts & nuts 1 No.
- Datum bar, light weight, portable, total span 5 meter, height approx 30cms mounted on two removable legs, made of 2 parts - 1 No.
