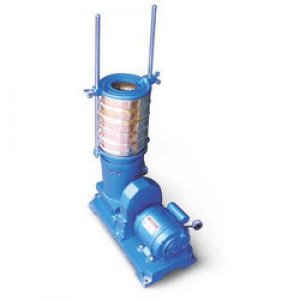

Sieve Shaker - Gyratory


This sieve shaker is designed to carry up to 7 sieves of 6 inch or 8 inch diameter. The 12 inch dia.sieves can be used with the help of Adaptor. A 1/4 HP. motor through a reduction gear immersed in oil drives the shaker. The sieve table dies not rotate but is inclined from the vertical axis and the direction of inclination changes progressively in clockwise direction. If the stop-pin below the table is removed. the shaker can have a rotary motion. In addition to this gyratory motion of the table, there is an upward and downward movement ensuring that each square cm of the sieve is utilized. A pair of rods and a holder is supplied. The holder can be fixed on the top of the upper most sieves, and thus the sieve set is firmly held. Suitable for operation on 230 volts, 50 cycles single phase A.C. Supply.

Adaptor for 30cm dia test sieves can be fitted in above.

For 45CM DIA Sieves:

This sieve shaker is designed to carry up to 7 sieves of 18" diameter. The shaker is driven by a 1/2 H.P.Electric Motor through a reduction gear. The sieve table does not rotate but is inclined from the vertical axis and the direction of inclination changes progressively in the clockwise direction, in addition to this gyratory motion of the table, there is and upward and downward movement at a frequency of about 270 vibration per minutes ensuring that each square inch of the sieve is utilised. The whole gear mechanism runs in an oil bath, without test sieves or time switch. Suitable for operation from 220 Volts 50 cycles A.C. supply.

Optional Extra:

  • DIGITAL Time switch 0-99 minutes for above
  • MECHANICAL Time switch 0-60 minutes for above
