- SINGLE GANG

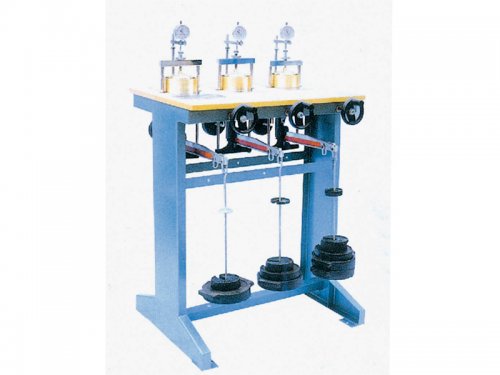

- THREE GANG
- SIX GANG
Consists of :
Loading Unit, maximum capacity 20 kg/cm2 consisting of a loading yoke connected to a lever arm with a counter- balancing adjustment and having a lever ratio of 1:10, the whole assembly being mounted on a steel frame stand.
Consolidation cell assembly, fixed ring type for testing 60 mm dia x 20 mm thick specimens comprising :
- Fixed ring for specimens 60 mm dia x 20 mm thick with a guide ring.
- Top porous stone for 60 mm dia specimen.
- Bottom porous stone for 60 mm dia specimen.
- Pressure pad, perforated
- Channeled base with water inlet.
- Flanged water jacket,
- Set of weights to give a pressure of 10 kg/cm2 on 60 mm specimen. Comprising : 7 off 0.05 kg/cm2, 5 off 0.1 kg/cm2, 6 off 0.2 kg/cm2, 6 off 0.5 kg/cm2, and 5 off 1.0 kg/cm2.
- Water reservoir with plastic tube, T-connection and pinch cock.
- Dial gauge, 0.01 mm x 25 mm travel
